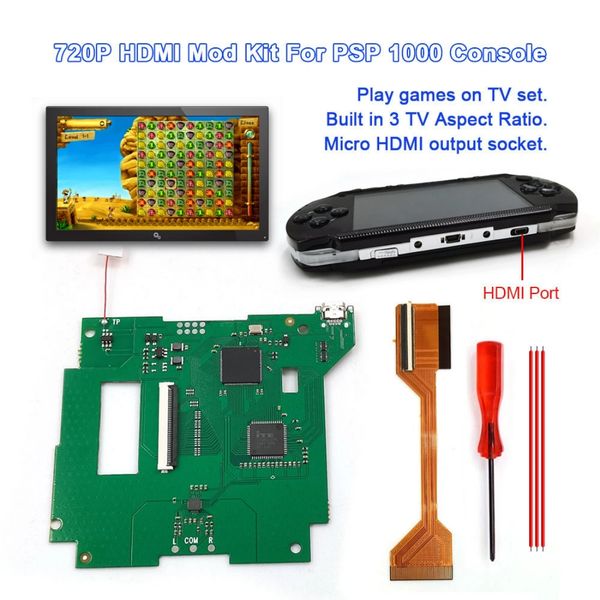

HISPEEDIDO New Product For Sony Playstaton Series
For PSP1000 Digital HDMI Mod Kits
Features
- Compatible with all PSP 1000 models/regions.
- NOT fit for PSP 2000, 3000 series.
- Digital to Digital HDMI output.
- 720P HDMI-Compatible Output.
- Built in 3 TV Aspect Ratio.
- Micro HDMI output socket.
Note: Need remove the CD drive.
Note: The Optical Drive needs to be removed.
Note: The infrared receiver needs to be removed.

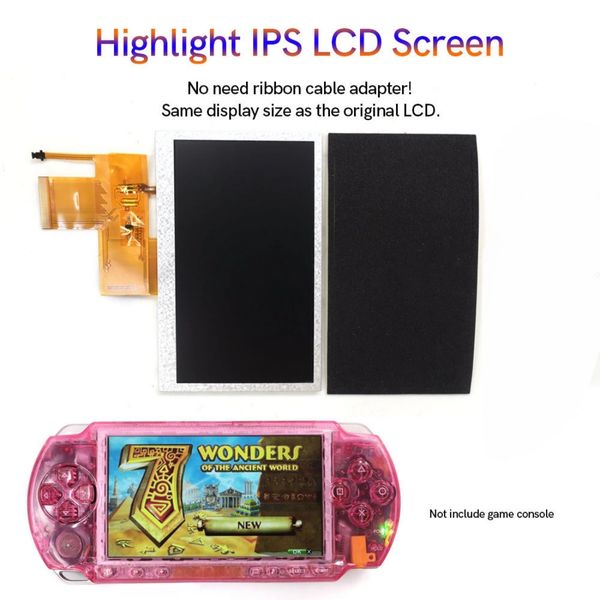

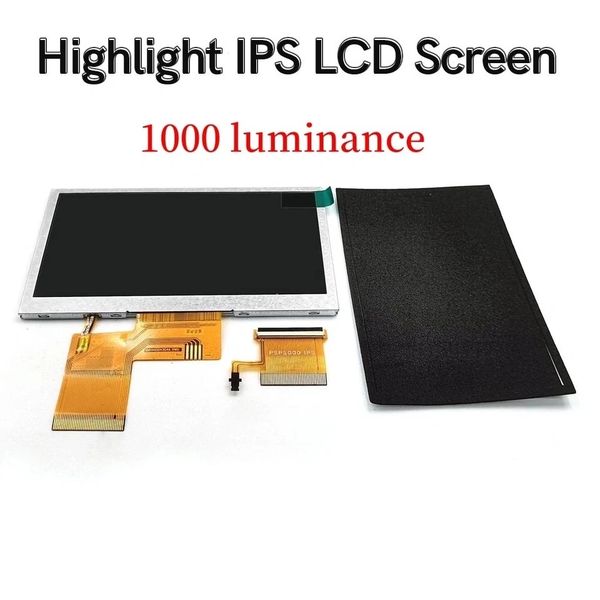

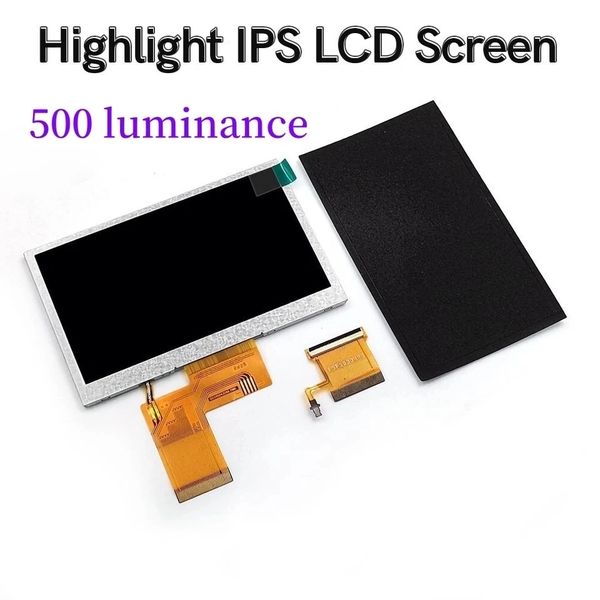

ForPSP1000 1001 LCD IPS Screen Replacement
Compatible Model with PSP 1000/1001 series
- High Brightness IPS LCD Kits .
- No need ribbon cable adapter
- Notice-NOT fit for PSP 2000, 3000 series.
Features
- High quality Full-view IPS replacement LCD
- No need ribbon cable adapter. No need to cut the shell. Just drop in the IPS LCD. Very easy to install.
- Same display size as the original LCD. Same display resolution as the original LCD. 480*272.
- High brightness.
- This IPS LCD No Smeared when playing games. (Play Action Games And Emulator Games Without Smearing)
Note:Need to short the two pads above the 34pin of the connector. In fact, all PSP1000 motherboard have these two pads, but these two pads are not connected. Connect directly with solder or connect with 'conductive sliver paint'. (You can use conductive sliver paint to connect the two pads if you don't have welding skill)
The positions of the two pads are different in different versions of the PSP 1000 motherboard. Please check the follow pictures.
Include
1x IPS LCD
1x Conductive sliver paint.
1x Foam tape
1x Dustproof cotton not includes the console
For Sony PS1 PSU DC Power Supply
Specification
Item type: Power Supply Replacement Kit
Material: ABS
Color: As picture shown
Applicable product: for PS1 Fat console
-Compatible with all PS1 Fat consoles.-Easy to be used to replace the PS1(100v-220v) original power supply (no modifications necessary).-Runs from an external12v 3amp power supply ( included).-Less heat inside your PS1 means that will potentially last longer.-Support PSIO (does not support its quick start mode, standard start is no problem), XS and other packages.
The 12V AC/DC power adapter Specification
Input : 110~240V AC 50/60HZ,
Output: DC 12V 3A.
Overload Protection
Short Circuit Protection
Over voltage protection
Efficiency: ≥80%
